• Axle, 3.16 ratio
• GVWR, 6001 lbs (2722 kg)
• E10 Fuel capable
• Cooling system, heavy-duty
• Alternator, 170 amps
• Trailering Package includes factory-installed hitch 4000 lb. towing, 7-pin wiring harness, Class III hitch, (V08) heavy-duty cooling system and Active Tow
• Chassis, All-Wheel Drive System (AWD model only. Includes all-wheel drive disconnect.)
• Traction Select
• Suspension, Ride and Handling MacPherson struts for front and independent 5-link rear
• Brakes, 4-wheel antilock, 4-wheel disc, 17" front and rear
• Exhaust, dual
• Tool kit, road emergency

• Wheels, 4 - 20" x 8.0" (50.8 cm x 20.3 cm) bright aluminum
• Tires, P235/55R20 all-season, H-rated, blackwall
• Wheel, spare, 18" x 4.5" (45.7 cm x 11.4 cm) steel
• Tire, compact spare, T135/70R18, blackwall
• Roof rails, Silver
• Headlamps, projector beam
• Headlamps, IntelliBeam, automatic high-beam (Included with (BGP) Driver Alert Package II.)
• Fog lamps, front projector type
• Glass, deep-tinted (all windows, except light-tinted glass on windshield and driver- and front passenger-side glass)
• Mirrors, outside heated power-adjustable and driver-side auto-dimming, body-color, manual folding
• Wipers, front intermittent with washers
• Wiper, rear intermittent with washer
• Liftgate, power programmable

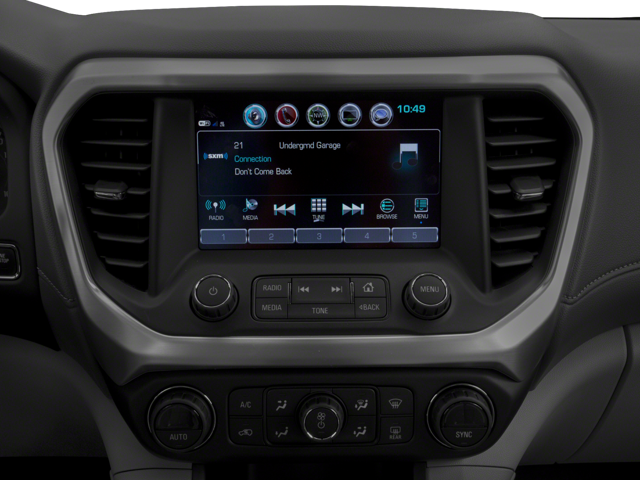

• Audio system, 8" diagonal Color Touch Screen with GMC Infotainment System, AM/FM/SiriusXM USB ports, auxiliary jack, Bluetooth® streaming audio for music and most phones, advanced phone integration featuring Apple CarPlay, Android Auto and voice-activated technology for radio and phone (Upgradeable to (IO6) 8" Diagonal Color Touch Screen Navigation with GMC Infotainment System.)
• SiriusXM Satellite Radio is standard on nearly all 2018 GM models. Enjoy a 3-month All Access trial subscription with over 150 channels including commercial-free music, plus sports, news and entertainment. Plus listening on the app and online is included, so you'll hear the best SiriusXM has to offer, anywhere life takes you. Welcome to the world of SiriusXM. (If you decide to continue service after your trial, the subscription plan you choose will automatically renew thereafter and you will be charged according to your chosen payment method at then-current rates. Fees and taxes apply. To cancel you must call us at 1-866-635-2349. See our Customer Agreement for complete terms at www.siriusxm.com. All fees and programming subject to change.)
• Audio system feature, Bose premium 8-speaker system with sub-woofer

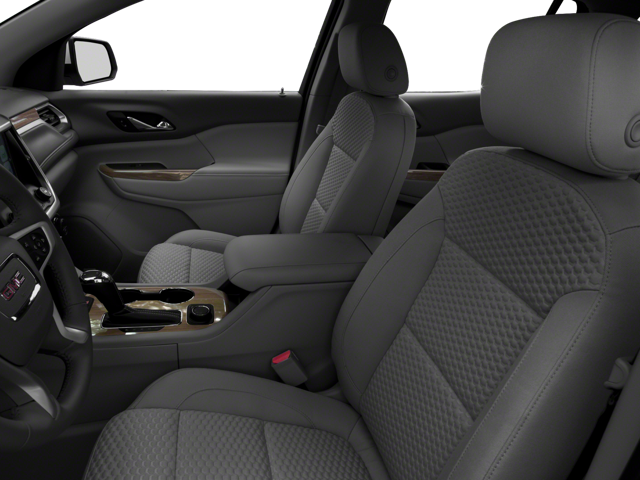

• Seats, front bucket

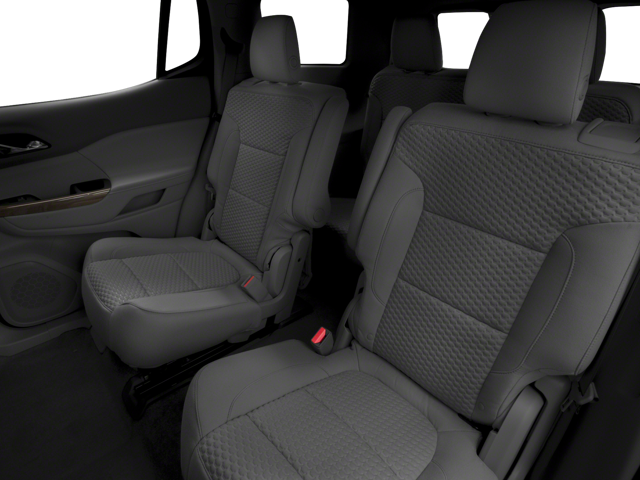

• Seating, 6-passenger (2-2-2 seating configuration)
• Seat adjuster, driver 8-way power
• Seat adjuster, front passenger, 8-way power
• Seat adjuster, power driver lumbar control
• Seat adjuster, power passenger lumbar control
• Seats, heated driver and front passenger
• Seats, heated rear outboard seating positions

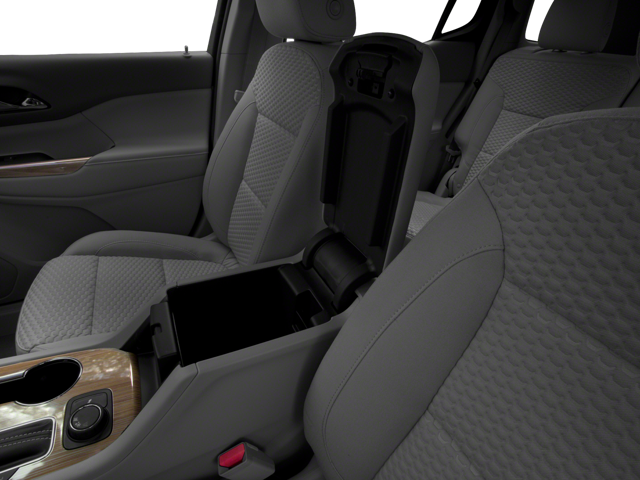

• Console, front center with 2 cup holders and storage, includes rear storage drawer
• Power outlet, 120-volt, 3-prong household style located on the rear of center console
• Cup holders 2 in front center console, 2 in front door panel, 2 bottle holders in front door panel, 2 in 2nd row and 2 in 3rd row, 10 total
• Floor mats, carpeted front and second row

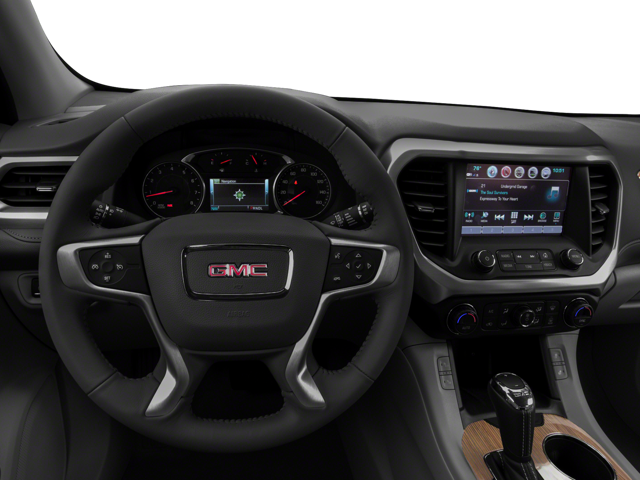

• Steering wheel, leather-wrapped with mounted audio and cruise controls
• Steering column, tilt and telescopic
• Display, driver instrument information enhanced, multi-color
• Sensor, humidity and windshield temperature
• Compass display
• Windows, power with driver Express-Up/Down and front passenger Express-Down
• Memory Package, recalls 2 "presets" for power driver seat and outside mirrors
• Door locks, power programmable with lockout protection
• Remote Keyless Entry, extended range
• Remote vehicle start
• Keyless open and start
• Universal Home Remote includes garage door opener, 3-channel programmable
• Cruise control, electronic with set and resume speed
• Air conditioning, tri-zone automatic climate control with individual climate settings for driver, right front passenger and rear seat occupants
• Air conditioning, rear
• Defogger, rear-window electric
• Mirror, inside rearview auto-dimming
• Lighting, interior with theater dimming, cargo compartment, reading lights for front seats, second row reading lamps integrated into dome light, door-and tailgate-activated switches and illuminated entry and exit feature
• Lamp Package, interior, deluxe

• Low Speed Forward Automatic Braking (Included with (BGP) Driver Alert Package II.)
• Daytime Running Lamps, LED
• Air bag, Passenger Sensing System sensor indicator inflatable restraint, front passenger/child presence detector (Always use safety belts and the correct child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Air bags, frontal and side impact for driver and front passenger driver inboard seat-mounted side-impact, driver side knee and head curtain side-impact for all rows in outboard seating positions (Always use safety belts and the correct child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• OnStar Guidance Plan Limited Trial Service including Automatic Crash Response, Stolen Vehicle Assistance, Roadside Assistance, Turn-by-Turn Navigation, Advanced Diagnostics and more (trial excludes Hands-Free Calling minutes) EFFECTIVE WITH RETAIL SALES STARTING 5/1/2018. (Visit www.onstar.com for coverage map, details and system limitations. Services vary by model.)
• GMC 4G LTE and available built-in Wi-Fi hotspot offers a fast and reliable Internet connection for up to 7 devices; includes data trial for 1 months or 3GB (whichever comes first) EFFECTIVE WITH RETAIL SALES STARTING 5/1/2018. (Available Wi-Fi requires compatible mobile device, active OnStar service and data plan. Data plans provided by AT&T. Visit onstar.com for details and system limitations.)
• GMC Connected Access with 10 years of standard connectivity which enables services such as, Vehicle Diagnostics, Dealer Maintenance Notification, GMC Smart Driver, Marketplace and more EFFECTIVE WITH SALES STARTING 5/1/2018. (Limitations apply. Not transferable. Standard connectivity available to original purchaser for ten years from the date of initial vehicle purchase for model year 2018 or newer GMC vehicles. See onstar.com for details and further plan limitations. Connected Access does not include emergency or security services. Availability and additional services enabled by Connected Access are subject to change.)
• Rear Vision Camera
• Front and Rear Park Assist (Included with (BGP) Driver Alert Package II.)
• Following Distance Indicator (Included with (BGP) Driver Alert Package II.)
• Lane Keep Assist with Lane Departure Warning (Included with (BGP) Driver Alert Package II.)
• Forward Collision Alert (Included with (BGP) Driver Alert Package II.)
• Front Pedestrian Braking (Included with (BGP) Driver Alert Package II)
• Lane Change Alert with Side Blind Zone Alert (Included with (BGP) Driver Alert Package II.)
• Rear Cross-Traffic Alert (Included with (BGP) Driver Alert Package II.)
• Door locks, rear child security
• Rear Seat Reminder
• Safety Alert Seat (Included with (BGP) Driver Alert Package II.)
• Teen Driver mode a configurable feature that lets you activate customizable vehicle settings associated with a key fob, to encourage safe driving behavior. It can limit certain vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report gives you information on your teen's driving habits and helps you to continue to coach your new driver
• Tire Fill Alert provides audible alerts outside the vehicle when inflating an under inflated tire to the recommended tire pressure.
• Tire Pressure Monitoring System with Tire Fill Alert
• Horn, dual-note

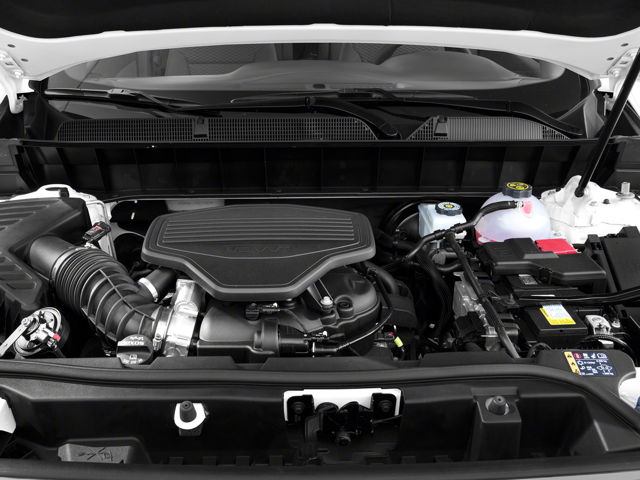

ENGINE, 3.6L V6, SIDI, DOHC

• with Variable Valve Timing (VVT) (310 hp [231.1 kW] @ 6600 rpm
• 271 lb-ft of torque @ 5000 rpm [365.9 N-m]) (STD)

• Preferred Equipment Group 4SB
• 3.16 Axle Ratio
• Wheels: 20" x 8.0" Bright Aluminum (4)
• Wheels: 20" x 8" Transit
• Wheels: 20" Ultra-bright Machined Faced (LPO)
• 6-Passenger (2-2-2 Seating Configuration)
• Perforated Leather-Appointed Seat Trim
• Radio: AM/FM 8" Diagonal Color Touch Screen
• Radio: AM/FM 8" Diagonal Color Touch Navigation
• Dual SkyScape 2-Panel Power Sunroof
• Front License Plate Bracket
• Black Accent Package (LPO)
• Molded Assist Steps
• Dark Finish Rear License Plate Trim (LPO)
• Dark Finish Tail Lamps (LPO)
• Black Finish Grille (LPO)
• SiriusXM Satellite Radio
• 4-Wheel Disc Brakes
• Apple CarPlay/Android Auto
• Emergency communication system: OnStar and GMC connected services capable
• Premium audio system: GMC Infotainment System
• Auto High-beam Headlights
• Exterior Parking Camera Rear
• AM/FM radio: SiriusXM
• Compass
• 8 Speakers
• Auto-dimming Rear-View mirror
• Front beverage holders
• Variably intermittent wipers
• Trip computer
• Traction control
• Tilt steering wheel
• Telescoping steering wheel
• Steering wheel mounted audio controls
• Speed-sensing steering
• Speed control
• Security system
• Roof rack: rails only
• Remote keyless entry
• Rear window wiper
• Rear window defroster
• Rear reading lights
• Rear anti-roll bar
• Rear air conditioning
• Radio data system
• Power windows
• Power steering
• Power passenger seat
• Power driver seat
• Power door mirrors
• Passenger vanity mirror
• Passenger door bin
• Panic alarm
• Overhead console
• Overhead airbag
• Outside temperature display
• Occupant sensing airbag
• Memory seat
• Low tire pressure warning
• Knee airbag
• Illuminated entry
• Heated rear seats
• Heated front seats
• Heated door mirrors
• Garage door transmitter: HomeLink
• Fully automatic headlights
• Front reading lights
• Front fog lights
• Front dual zone A/C
• Front anti-roll bar
• Four wheel independent suspension
• Dual front side impact airbags
• Dual front impact airbags
• Driver vanity mirror
• Driver door bin
• Delay-off headlights
• Bumpers: body-color
• Brake assist
• Automatic temperature control
• Auto-dimming door mirrors
• Alloy wheels
• ABS brakes
• 3rd row seats: split-bench
• Voltmeter
• Tachometer
• Spoiler
• Power Liftgate
• Front Center Armrest
• Front Bucket Seats
• Electronic Stability Control
• Air Conditioning

• Vehicle
• EPA Classification: 4WD Sport Utility Vehicle
• Mileage
• Fuel Economy Est-Combined (MPG): 20
• EPA Fuel Economy Est - City (MPG): 17
• EPA Fuel Economy Est - Hwy (MPG): 25
• Electrical
• Cold Cranking Amps @ 0° F (Primary): - TBD -
• Maximum Alternator Capacity (amps): 170
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Base Curb Weight (lbs): 3956
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 4000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 400
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 4000
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 400
• Suspension
• Suspension Type - Front: MacPherson Strut
• Suspension Type - Rear: Multi-Link
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12.6 x 1.9
• Rear Brake Rotor Diam x Thickness (in): 12.4 x 0.9
• Tires
• Front Tire Order Code: QNU
• Rear Tire Order Code: QNU
• Spare Tire Order Code: ZCD
• Front Tire Size: P235/55R20
• Rear Tire Size: P235/55R20
• Spare Tire Size: T135/70R18
• Wheels
• Front Wheel Size (in): 20 x 8.0
• Rear Wheel Size (in): 20 x 8.0
• Spare Wheel Size (in): 18 x 4.5
• Front Wheel Material: Aluminum
• Rear Wheel Material: Aluminum
• Spare Wheel Material: Steel
• Steering
• Steering Type: Electric Rack & Pinion
• Steering Ratio (:1), Overall: - TBD -
• Lock to Lock Turns (Steering): - TBD -
• Turning Diameter - Curb to Curb (ft): 38.7
• Turning Diameter - Wall to Wall (ft): N/A
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 22
• Exterior Dimensions
• Wheelbase (in): 112.5
• Length, Overall (in): 193.6
• Width, Max w/o mirrors (in): 75.4
• Height, Overall (in): 66
• Track Width, Front (in): 64.5
• Track Width, Rear (in): 64.5
• Min Ground Clearance (in): 7.20
• Rear Door Opening Height (in): - TBD -
• Rear Door Opening Width (in): - TBD -
• Liftover Height (in): - TBD -
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Seat 1 (in): - TBD -
• Cargo Area Length @ Floor to Seat 2 (in): - TBD -
• Cargo Area Length @ Floor to Seat 3 (in): - TBD -
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): - TBD -
• Cargo Box (Area) Height (in): - TBD -
• Cargo Volume to Seat 1 (ft³): 79
• Cargo Volume to Seat 2 (ft³): 41.7
• Cargo Volume to Seat 3 (ft³): 12.8
• Interior Dimensions
• Passenger Capacity: 6
• Passenger Volume (ft³): 143.8
• Front Head Room (in): 40.3
• Front Leg Room (in): 41
• Front Shoulder Room (in): 59.4
• Front Hip Room (in): 55.7
• Second Head Room (in): 39.6
• Second Leg Room (in): 39.7
• Second Shoulder Room (in): 58.7
• Second Hip Room (in): 53.3
• Third Head Room (in): 37.2
• Third Leg Room (in): 31.1
• Third Shoulder Room (in): 54.3
• Third Hip Room (in): 42.9
• Summary
• Vehicle Name: GMC Acadia
• Body Style: 4 Door
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: 8.8
