• Body, standard
• All wheel drive
• Battery, heavy-duty 770 cold-cranking amps, maintenance-free with rundown protection and retained accessory power
• Alternator, 145 amps
• Frame, full-length box ladder-type
• Suspension, front independent with torsion bar (computer selected) and stabilizer bar (Requires *H***05 models.)
• Suspension, rear hypoid drive axle with multi-leaf springs
• Steering, power
• Brakes, 4-wheel antilock, 4-wheel disc
• Fuel tank capacity, mid-frame and approximately 31 gallons (117.3L)
• Exhaust, aluminized stainless-steel muffler and tailpipe

• Wheels, 4-17" x 7" (43.2 cm x 17.8 cm) steel includes steel spare (Requires **13405 models. Includes (P03) Wheel trim, chrome center cap.)
• Tires, front P245/70R17 all-season, blackwall (Requires **13405 models standard tire.)
• Tires, rear P245/70R17 all-season, blackwall (Requires **13405 models standard tire.)
• Tire, spare P245/70R17 all-season, blackwall (Requires **13405 models standard tire.)
• Door, swing-out passenger-side, 60/40 split
• Wheel trim, chrome center cap (Included on *G23*05 models. Included with (NX7) 4 - 17" x 7" (43.2 cm x 17.8 cm) steel wheel.)
• Trim, rear body-colored halo (replaces standard black panel located above rear tail lamps) (Not included when (41U) Black, (63U) Sport Red Metallic or (74U) Victory Red are ordered. These colors will receive a Black halo.)
• Bumpers, front and rear chrome with step-pad
• Grille, chrome with dual composite halogen headlamps
• Mirrors, outside heated power-adjustable, Black, manual-folding
• Glass, Solar-Ray deep-tinted (all windows except light-tinted glass on windshield and driver-and front passenger-side glass)
• Glass, swing-out rear cargo door windows
• Glass, swing-out rear side door and rear door window
• Glass, fixed rear doors and side cargo doors
• Wipers, front intermittent wet-arm with pulse washers
• License plate kit, front
• Door, swing-out driver-side, 60/40 split (Requires C*13405 and CG23405 models.)

• Audio system, AM/FM stereo with CD player seek-and-scan, digital clock, TheftLock and random select (Not available with (NP5) leather wrapped steering wheel)

• Seat, temporary driver includes driver-and passenger-side safety belts and seat risers
• Air conditioning, single-zone manual (Includes quick connectors for rear air conditioning.)
• Floor covering delete
• Steering wheel, steel sleeve column with theft-deterrent locking feature
• Oil life monitor
• Warning tones, headlamp on and key-in-ignition
• Windows, power
• Door locks, power with lock-out protection
• Tow/haul mode selector, instrument panel-mounted
• Theft-deterrent system, vehicle, PASS-Key III
• Cruise control
• Defogger, side windows
• Trim panels, front, side and rear doors
• Mirror, inside rearview manual day/night
• Visors, driver and front passenger, padded with cloth trim and dual vanity mirrors, illuminated on passenger-side
• Assist handle, front passenger

• StabiliTrak, stability control system
• Door beams, steel-side
• Daytime Running Lamps
• Air bags, frontal, driver and right-front passenger (Includes passenger-side air bag deactivation switch on models with (C6P) 8600 lbs. (3901 kg) GVWR and above. Never place a rear-facing infant restraint in the front seat of any vehicle equipped with an active frontal air bag. Always use safety belts and the correct child restraints for your child's age and size, even in vehicles equipped with air bags. Children are safer when properly secured in a rear seat. See the vehicle's Owner's Manual and child safety seat instructions for more safety information.)
• Tire Pressure Monitoring System (does not apply to spare tire)

• Incomplete vehicle certification

ENGINE, VORTEC 5.3L V8 SFI

• (301 hp [224.4 kW] @ 5200 rpm
• 325 lb-ft of torque [438.8 N-m] @ 4500 rpm) (STD)

• 3.73 Axle Ratio
• Wheel Trim w/Chrome Center Caps
• 17" x 7" Steel Wheels
• Custom Vinyl Seat Trim
• AM/FM Stereo w/CD Player
• Rear Air
• Convenience Package
• Tilt & Cruise Convenience Package
• Power Door Locks w/Lock-Out Protection
• Auxiliary Rear Heater
• Auxiliary Lighting
• 60/40 Split Swing-Out Driver Side Door
• Rear Body-Colored Halo Trim
• Outside Temperature Display
• Remote Keyless Entry
• Power Windows
• Dual Composite Halogen Headlamps
• Cruise Control
• Tilt Steering Wheel
• Full Body Fixed Glass Window Package
• Chrome Grille
• Power Mirrors w/Integrated Turn Signal Indicators
• Heavy-Duty Trailering Equipment
• 7-Pin Sealed Connector Trailer Wiring
• 8-Point Digital Compass
• 4-Wheel Disc Brakes
• 2 Speakers
• Front beverage holders
• Variably intermittent wipers
• Trip computer
• Power steering
• Passenger door bin
• Low tire pressure warning
• Fully automatic headlights
• Front wheel independent suspension
• Front anti-roll bar
• Dual front impact airbags
• Driver door bin
• Delay-off headlights
• ABS brakes
• Voltmeter
• Tachometer
• Air Conditioning

• Vehicle
• Rear Door Type: Dual Swing-out
• Mileage
• Fuel Economy Est-Combined (MPG): 14
• EPA Fuel Economy Est - City (MPG): 13
• EPA Fuel Economy Est - Hwy (MPG): 16
• Electrical
• Cold Cranking Amps @ 0° F (Primary): 770
• Maximum Alternator Capacity (amps): 145
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): 14.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 3700
• Gross Axle Wt Rating - Rear (lbs): 4000
• Curb Weight - Front (lbs): 2927
• Curb Weight - Rear (lbs): 2163
• Gross Vehicle Weight Rating Cap (lbs): 7300
• Gross Combined Wt Rating (lbs): 12000
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 6400
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 960
• Suspension
• Suspension Type - Front: Torsion Bar
• Suspension Type - Rear: Hypoid Multi-Leaf
• Spring Capacity - Front (lbs): 3700
• Spring Capacity - Rear (lbs): 4000
• Axle Type - Front: Independent
• Axle Type - Rear: Semi-Floating
• Axle Capacity - Front (lbs): 3700
• Axle Capacity - Rear (lbs): 4000
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): - TBD -
• Shock Absorber Diameter - Rear (mm): - TBD -
• Stabilizer Bar Diameter - Front (in): 1.30
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 12 x 1.1
• Rear Brake Rotor Diam x Thickness (in): 13 x 1.2
• Tires
• Front Tire Order Code: XPR
• Rear Tire Order Code: YPR
• Spare Tire Order Code: ZPR
• Front Tire Size: P245/70R17
• Rear Tire Size: P245/70R17
• Spare Tire Size: P245/70R17
• Front Tire Capacity (lbs): 2063
• Rear Tire Capacity (lbs): - TBD -
• Spare Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Revolutions/Mile @ 45 mph - Spare: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 7.0
• Rear Wheel Size (in): 17 x 7.0
• Spare Wheel Size (in): 17 x 7.0
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Spare Wheel Material: Steel
• Steering
• Steering Type: Pwr-Assisted
• Steering Ratio (:1), On Center: 17.2
• Steering Ratio (:1), At Lock: 17.2
• Turning Diameter - Curb to Curb (ft): 43.4
• Turning Diameter - Wall to Wall (ft): - TBD -
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 31
• Fuel Tank Location: LH Midship Inboard
• Doors
• Side Door Type: Swing-out
• Exterior Dimensions
• Wheelbase (in): 135.0
• Length, Overall w/rear bumper (in): 224.1
• Width, Max w/o mirrors (in): 79.4
• Height, Overall (in): 81.6
• Overhang, Front (in): 39.7
• Overhang, Rear w/bumper (in): - TBD -
• Ground to Top of Load Floor (in): 27.7
• Ground Clearance, Front (in): 8.6
• Ground Clearance, Rear (in): 7.6
• Rear Door Opening Height (in): 49.4
• Rear Door Opening Width (in): 57.0
• Side Door Opening Height (in): 47.9
• Side Door Opening Width (in): 44.1
• Step Up Height - Front (in): 20.1
• Step Up Height - Side (in): 20.9
• Cargo Area Dimensions
• Cargo Area Length @ Floor to Console (in): 153.6
• Cargo Area Length @ Floor to Seat 1 (in): 127.8
• Cargo Area Width @ Beltline (in): - TBD -
• Cargo Box Width @ Wheelhousings (in): 52.7
• Cargo Box (Area) Height (in): 51.9
• Cargo Volume (ft³): 225.1
• Interior Dimensions
• Passenger Capacity: 1
• Front Head Room (in): 40.2
• Front Leg Room (in): 41.3
• Front Shoulder Room (in): 68.8
• Front Hip Room (in): 65.5
• Summary

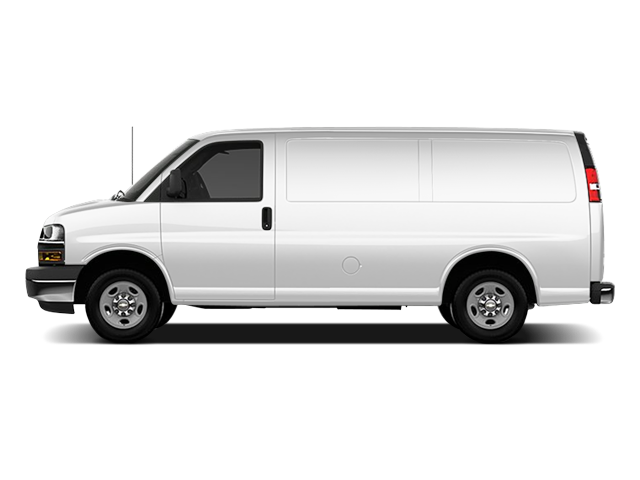

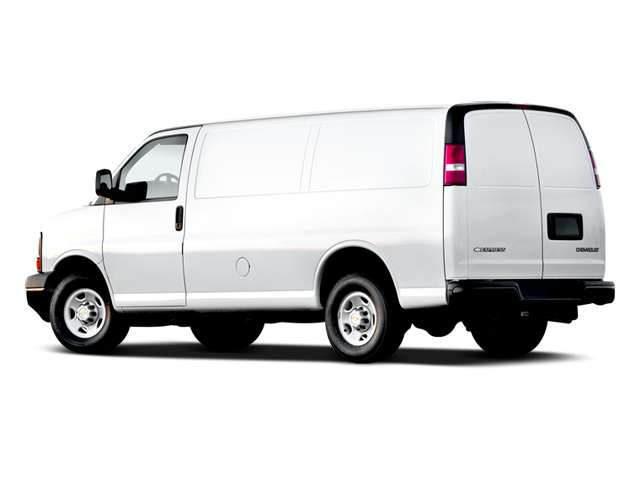

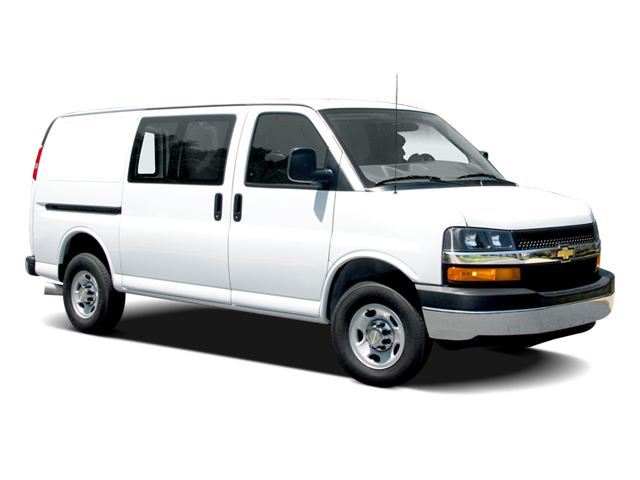

• Vehicle Name: Chevrolet Express Cargo Van
• Body Style: 1500 Cargo Van 135" WB w/YF7
• Body Code: ZW9
• Emissions
• EPA Greenhouse Gas Score: 1
